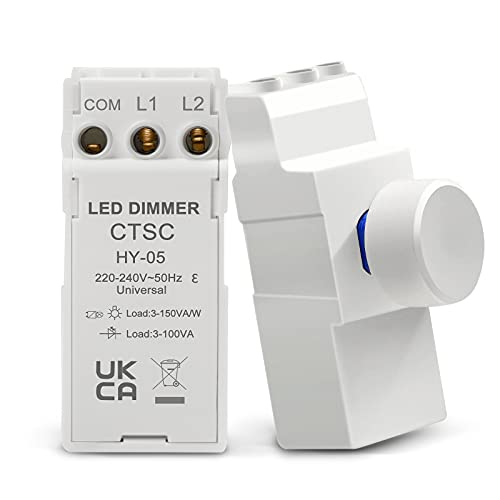

CTSC Led Dimmer Module, Universal Led Dimmer, 1 Gang 2-Way Dimmer Switch, LED 3-100W Push-On/Off Switch Module

Operation–How to Factory Reset and Adjust the min brightness level?

When first installed the dimmer or replace new lights, a factory reset action is required to get the optimal dimming performance.

How to factory reset?
1.Switch on and set the dimmer knob to the Min position (turn fully anti-clockwise).
2.Push the knob for 8 times. Every push interval should be about 1 second.
3.The lights will will step up and down in brifhtness for twice to show that the dimmer is in CONFIGURA-TIONMODE, then either stay at a low light level or go off.

How to adjust and set the min brightness level?
1.After factory reset, Slowly adjust to the brightness that you are happy with at the min. Leave the dimmer in this position.
2. Push the knob for 4 times until the light step up and down in brightness for once, the setting saved. Every push interval should be about 1 second.

How to change the dimming made from Trailing edge to Leading edge?
The dimmer default setting is Trailing Edge dimming.
To change into Leading Edge dimming, Please refer to instruction below;
1. Turn on the light and turn the light into Max brightness.
2. Switch on and off the light 5 times, each interval is about 1 second.
The light will flash Twice to show dimmer is in Leading Edge mode.

Note: To switch back into Trailing Edge mode just repeat the operation again and the light will flash Once to show the dimmer is back in Trailing Edge dimming mode again.

FEATURES: LED dimmer module, universal (trailing edge and leading edge) technology. When first installed the dimmer module or replace new lights, a factory reset action is required to get the optimal dimming performance. How to factory reset? How to adjust and set the min brightness level? How to change the dimming made from Trailing edge to Leading edge? Please refer to the instruction manual for settings.
FUNCTION: Push the LED dimmer module switch, can control the light source on and off. When the dimmer switch is turned, it will surprise us, and the brightness of the light can be effectively adjusted according to the requirements of the atmosphere at the time, adding atmosphere to our lives.
ENERGY SACINGS: LED dimmer module working voltage: 220-240VAC, LED lamp: 3-100W; Incandescent/Halogen Bulbs: 3-150VA; Dimming range 0 — 100% to cut energy costs and extend bulb life. LED dimmer module not suitable for led strip lights
TECHNOLOGY: Dimmer module with technical innovations such as zero noise, no flicker, overload protection, overcurrent protection, overvoltage protection, and overtemperature protection. LED dimmer module can be fitted into wall box with a minimum depth of 25 mm and Easy to install using your home’s existing wiring without neutral line.
SERVICE: 3-YEAR LIMITED WARRANTY, If you have any problems about dimmer switches or need other support, please feel free to contact us through Amazon.
