AXFEE LED Dimmer Switch, 1 Gang 220V-240V Trailing Edge Rotary ON/OFF Inline Dimmer Light Switch, Suitable for Home 3-100W Dimmable LED, Halogen Bulbs, Ceiling, Incandescent (White)

AXFEE LED Dimmer Switch — A great choice for home dimming!

Our LED dimmer switch has a sophisticated design that greatly saves space. It provides a dimming range from 0 to 100%, allowing you to adjust to the most ideal brightness level at will, gently protecting your eyes and reducing visual fatigue. By adjusting the light intensity, it helps you significantly reduce energy costs. It integrates excellent overload protection, overcurrent protection and overheat protection mechanisms to protect the safety of home electricity use in all aspects, allowing you to use it without worry. This stylish, practical, safe and energy-saving dimmer switch is an ideal choice for your home upgrade！

Product specifications ：

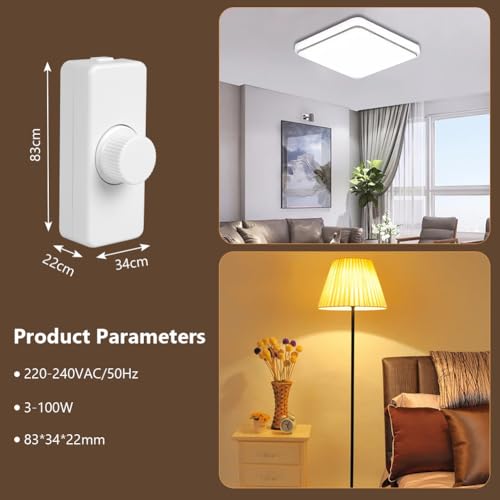

Size: 83*34*22mm, button thickness 35mm
Color: White
Material: PC
Single-core connection: maximum 0.75mm²
Dimmable range: 3-100W
PF（Power Factor）>0.9（100w）

Packing list:
1* dimmer switch
4* screws
2* gaskets
1* instruction manual

Notice:
Please disconnect the power supply before putting the device into use to avoid electric shock.
If the power exceeds 100W for a long time, the dimmer temperature will be too high and the built-in MOS will be damaged, and the dimming function will be lost.

If you have any questions, please feel free to send message and we will provide you with a satisfactory solution.

【ADVANCED PROTECTION】The LED inline dimmer switch is made of high-quality flame-retardant material, with excellent overload protection, overcurrent protection and overheat protection. The trailing edge dimming adopts soft start and soft shutdown technology to avoid thermal shock to the filament, thereby extending the life of the lamp. Complies with UKCA/CE/ROHS safety standards.
【SCOPE OF APPLICATION】The dimmer switch is compatible with incandescent lamps, dimmable LED lamps, high-voltage halogen lamps, ceiling lamps and halogen lamps with electronic transformers in the power range of 3W-100W (PF＞0.9). Not suitable for LED light strips, induction transformers, fans and motor speed control. (Note: Please confirm that your LED lamp is marked as “Dimming/Dimmable” before purchasing.)

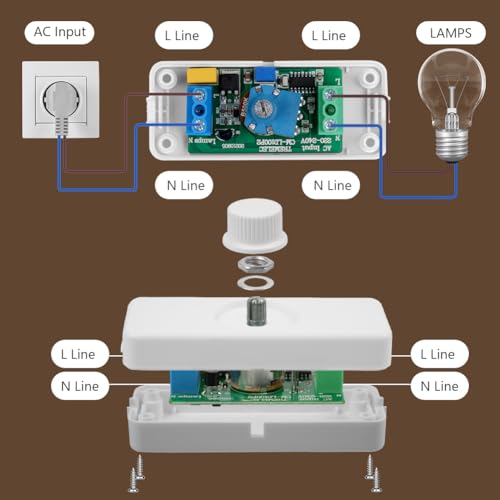

【EASY INSTALLATION】The dimmer switch has a wiring terminal. The N and L wires of the AC input connect the inline dimmer switch and are connected to the lighting system through the N and L wires at the other end. There is a click sound on the knob when the LED dimmer switch is turned on and off. Turn the knob clockwise to increase the brightness and counterclockwise to decrease the brightness. Please refer to the schematic diagram for detailed installation.
【ENERGY SAVING AND EYE PROTECTION】The inline dimmer switch can preset the minimum brightness to reduce energy costs, providing a uniform dimming range of 0 to 100%. Zero noise when adjusting the knob, smooth operation of lighting, flicker-free dimming, allowing your eyes to adapt to changes in light, reducing eye fatigue and protecting your eyes from damage.
【COMPACT AND STYLISH DESIGN】This LED dimmer switch measures 83*34*22mm, and the button thickness is 35mm. It takes up little space when connected to lighting equipment. It has a slim, raised profile, matte softly rounded corners, and a super stylish modern design, making it a great choice for home dimming!
